classic LED flood light
| Name: | classic LED flood light |

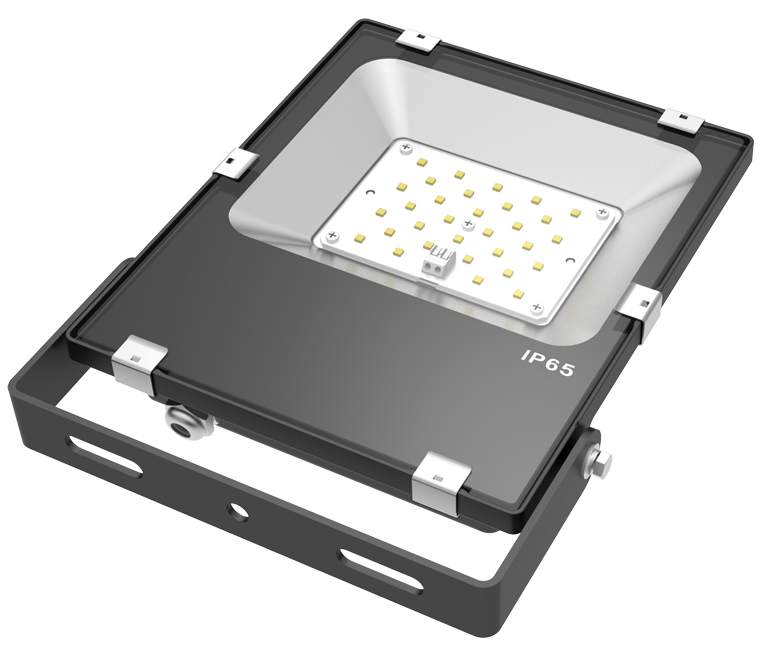

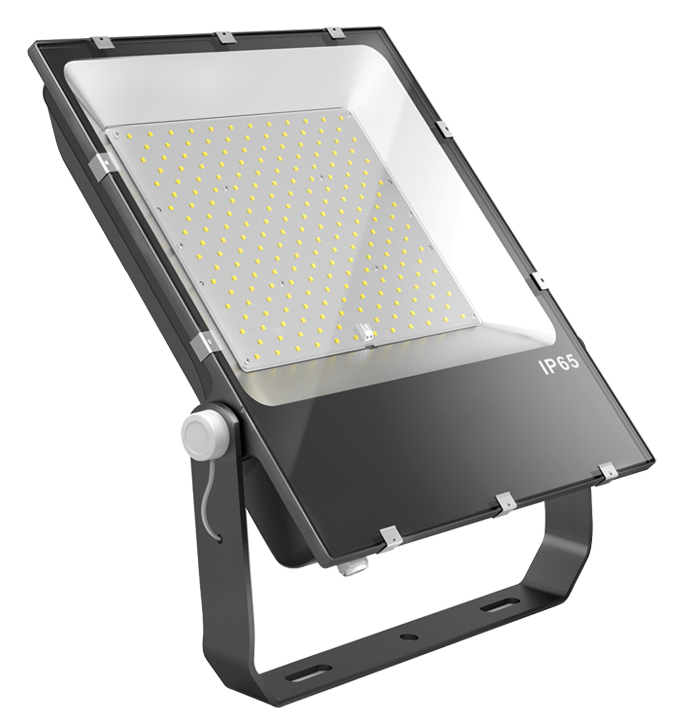

High Lumens LED Flood Light (10W-200W)
Product Overview
Product Features

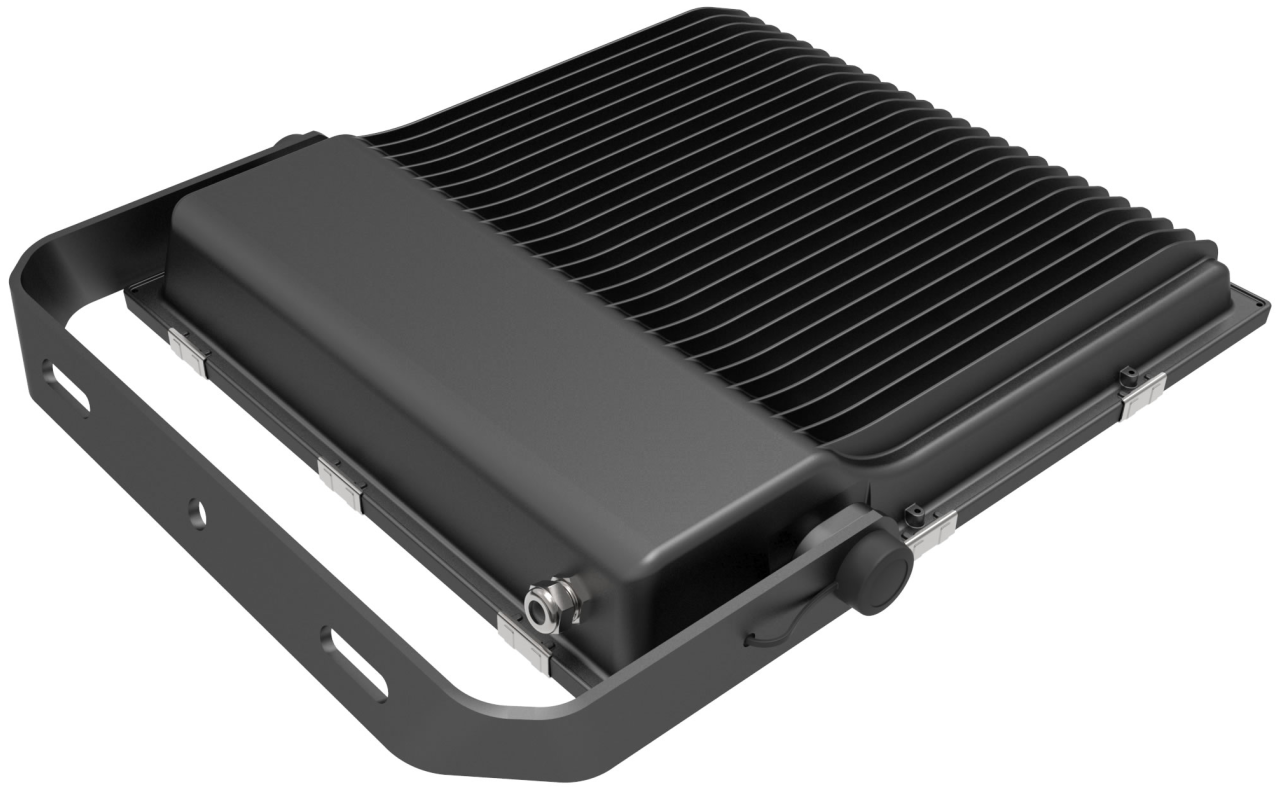

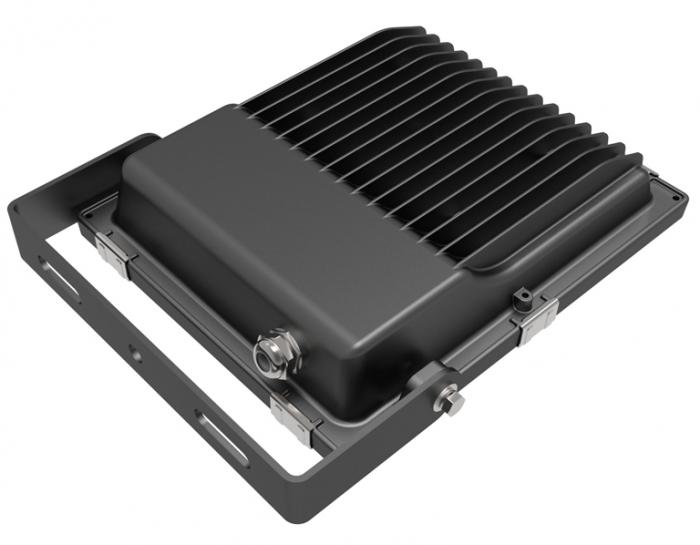

1.Aluminum Material
Full aluminum whole lamp radiator technology,
perfect efficiently solve the problem of the led heat dissipation, greatly extend the life of the light source

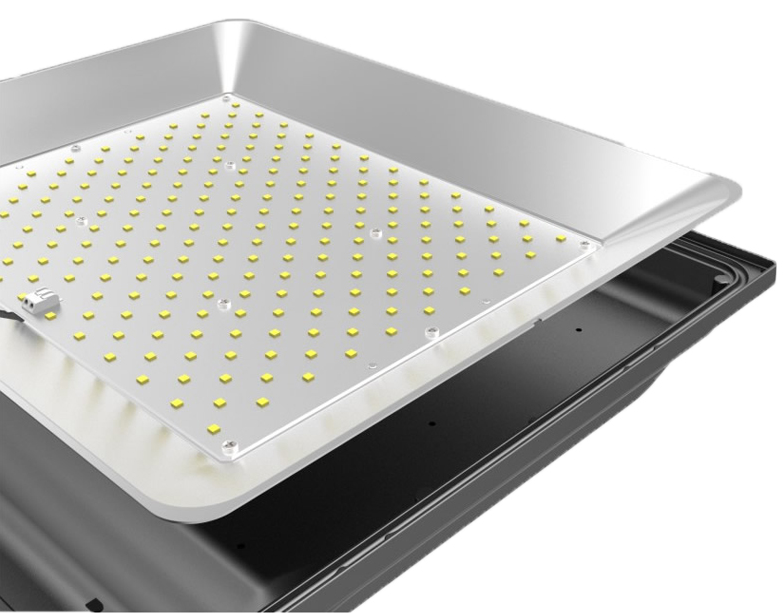

2.Pure aluminum reflector
The reflector is made of pure aluminum(99.8%)
which anti-oxidation and unfading in colour,ensuring the reflection
3.Waterproof: IP67
With the silicone ring, the waterproof can be made to IP67,
totally prevent the dust and water from rainstorm.

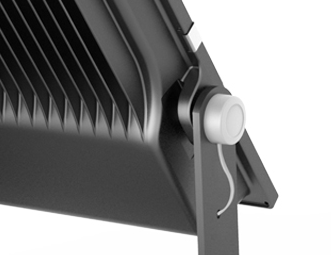

4.Adjustable beam angle
adapt to the upgrading and replacement the traditional MH, HID lights
Parameter&Specification
Model: ECFL-30W
| Electrical specification Power: 30w Input Voltage: AC90-260V,50HZ/60HZ DC:12V/24V Maximum Current: AC 0.36A -120V,0.18A -240V DC 3.24A -12V,1.62A -24V Working Temperature: -40 ºC to +50 ºC Power Factor:> 0.90 Drive Efficiency: >90% |
Photometric specification Lumen output: 100-125lm/w 3000-4000k:80-90lm/w 5000-6500k:100-110lm/w CRI:Ra>=75 CCT: 2700-3500K 4000-4500k 5000-6500k 7000-7500k |
Mechanical specification IP Rating:IP67 Lifetim:>50000hours Heat Radiator: Anodized Aluminum Lens Beam Angle: 120°-140° Fixture Dimension: 227*165*40mm Fixture Weight:2kgs |
More Models: 10W,20W,30W,50W,80W,100W,150W,200W are selectable.

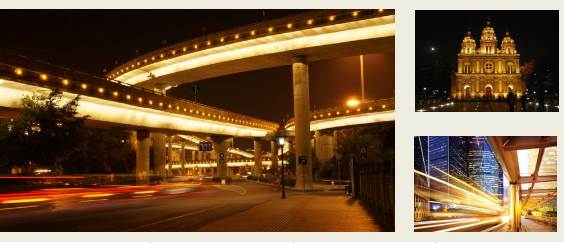

Product Application
1.Shopping mall, exhibition hall, large warehouses
2.Playground,parking lot,gymnasium,park sculpture
3.Building facede and public corridor,stair sorridor
4.Billboard, national green lighting project
