high lumens UFO LED light

Name:high lumens UFO LED light

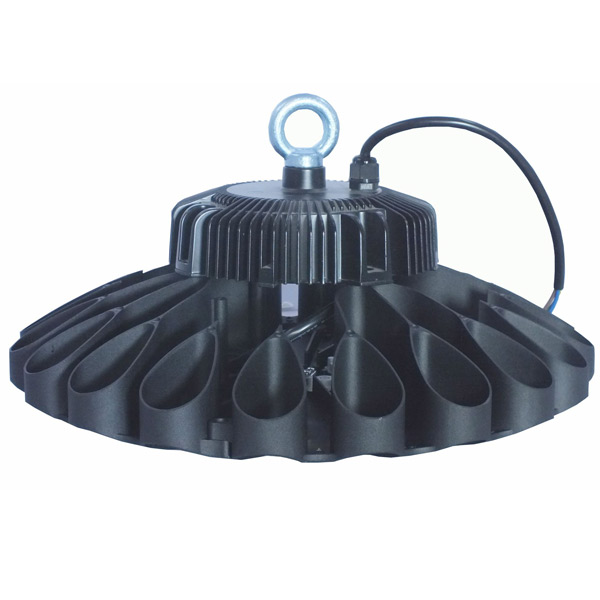

High Lumens UFO LED light (100W-200W)

Product Overview

Product Features

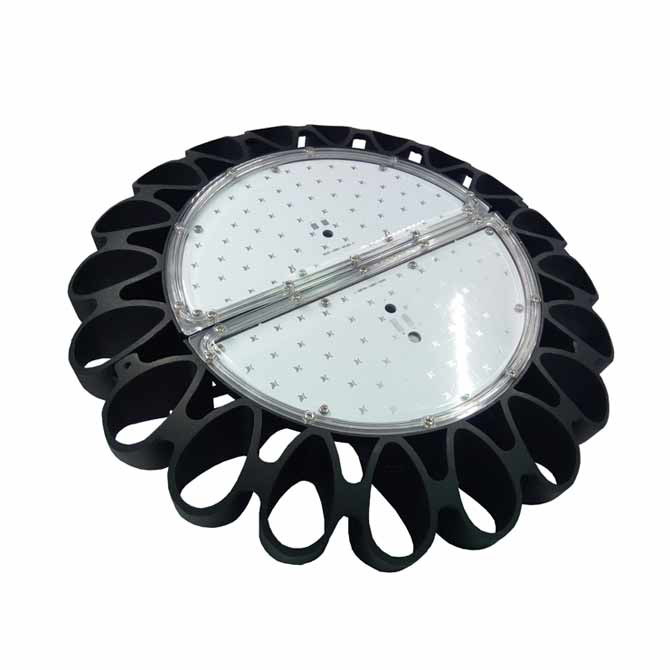

1.High lumens UFO led light adopt high quality Philips 3030 chip,

high lumen 160lm/w, longer lifespan.

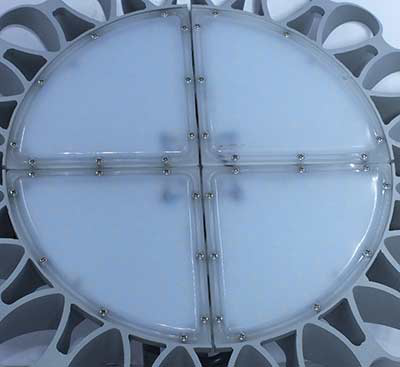

2.60°  90°  120° beam angle Lens use high light transmittance lens,

lighting increased to95% utilization,high bright output  lumen 110lm/w.


Lens with 60°  90°  120° beam angle could be choose, perfect  solution for different ligting area.


High quality lens makes the light soft and no dazzle.

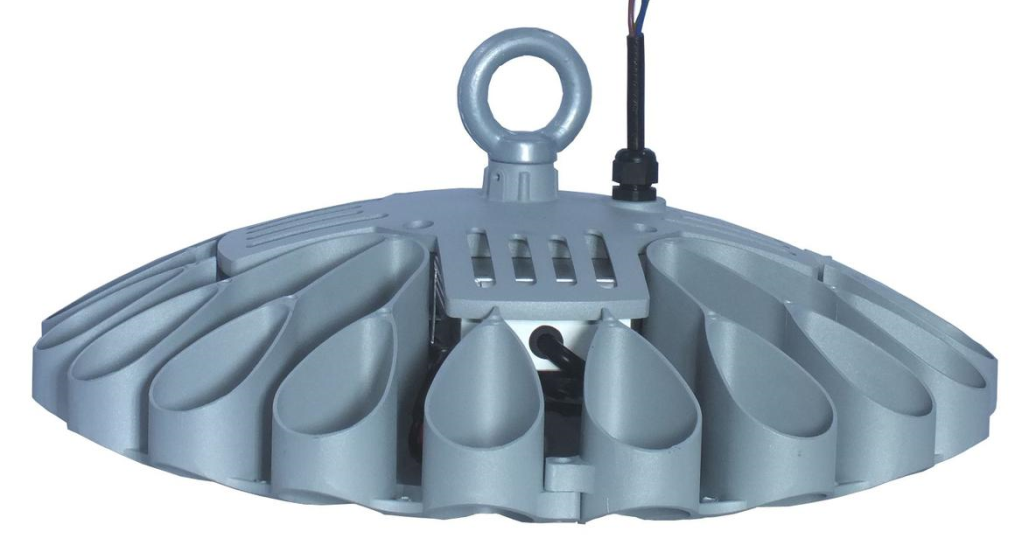

3.With aluminum material, increased heat dissipation effect

Design looks like UFO, beautiful and efficient.

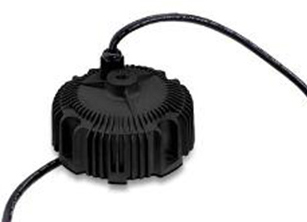

4.with high-end Meanwell series, input voltage could be

290-305V, suitable for differents country.

Meanwell driver is waterproof IP65 design.

The Driver box protect the driver from water and violation of the environment.





Prameter&Specification


Model: ELU-100W




Electrical specification

Power: 100w

Input Voltage:

AC90-260V,50HZ/60HZ

DC:12V/24V

Working Temperature:

-40 ºC to +50 ºC

Power Factor:> 0.90

Drive Efficiency: >90%

Photometric specification

Lumen output:

110lm/w

CRI:Ra>=75

CCT:

2700-3500K 4000-4500k

5000-6500k 7000-7500k

Mechanical specification

IP Rating:IP65

Lifetim:>50000hours

Heat Radiator:

Anodized Aluminum

Lens Beam Angle:

120°

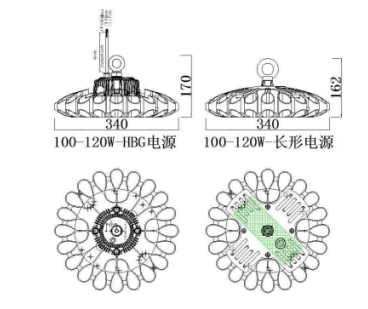

Fixture Dimension:

340*340*170mm

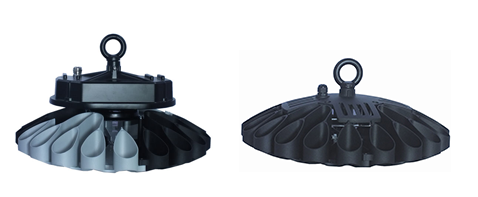

Power Options: 100W,150W,200W. More 2 appearance shapes are available.


Product Application

High-bay lighting factories

workshops

warehouse

Logistics centers

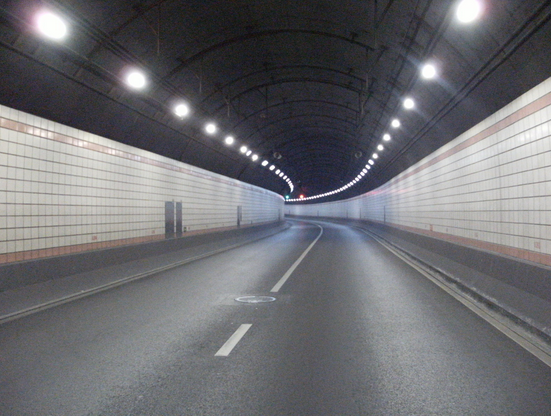

Tunnels

Parking a lot
